Part Number:HS543-HS545
Material:20Cr/20CrMnTi
Surface Hardness: HRC58-64
Core Hardness: HRC33-48
Tolerance:D:0--0.015mm/L:0--0.20mm
Dust Cover: NBR
| Details: | |||
| Material: | 20Cr/20CrMnTi | Model Number: | HS543-HS545 |
| Product Name: | Double U Joint | Brand Name: | ROXIN |
| Series: | 4C | Sizes: | 36.5X112X108MM |
| Market: | After Market/OEM | Packing Details: | Inner Bags+Outer Box & Carton+ Wooden Pallet |
| Product Description: | |||
| Cross Shaft:20Cr/20CrMnTi | Bearing Cup:20Cr/20CrMnTi | ||
| Surface Hardness: HRC58-64 | Surface Hardness: HRC58-64 | ||
| Core Hardness: HRC33-48 | Cementite deepness:0.3-0.7mm | ||
| Cementite Deepness:0.8-1.3mm | Needle:GCr15 Surface Hardness: 58-64HRC | ||
| Dust Cover: NBR | Tolerance: D:0--0.015mm L:0--0.20mm | ||
| Grease:No.2 automobile grease | Circlips:65Mn Hardness:48-53HRC | ||

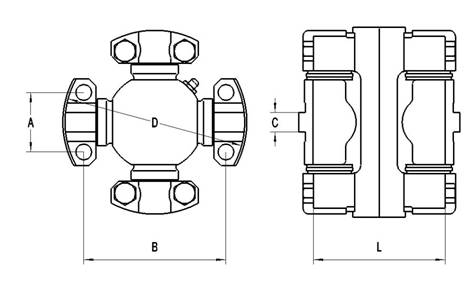

| Double U Joint | |||||||
| Series | A (mm) | B (mm) | C (mm) | D (mm) | L (mm) | Bearing Type | Ref. No. |
| 2C | 33.32 | 59.5 | 9.5 | 79.35 | 74.93 | 2LWD, 2LWT/4LWD | |
| 4C | 36.52 | 87.3 | 9.5 | 107.9 | 79 | 2HWD, 2LWT/2HWD, 2LWD | HS543-HS545 |
| 5C | 42.88 | 88.9 | 14.26 | 115.06 | 105 | 4HWD/4HWD | CA25 |
| 6C | 42.88 | 114.3 | 14.26 | 140.46 | 119.96 | 4HWD/4HWD | 144-15-17001 |
| 6C | 42.88 | 114.3 | 15.85 | 140.46 | 127 | 4HWD/4HWD | |
| 7C | 49.2 | 117.46 | 15.85 | 148.38 | 119.96 | 4HWD/4HWD | 144-10-12100 |
| 8.5C | 71.4 | 123.8 | 15.85 | 165.1 | 158.8 | 4HWD/4HWD | 175-20-11000 |
| 50 | 180.1 | 16 | 208 | 135 | 4HWD/4HWD | 154-20-10002 | |
| 9C | 71.44 | 168.3 | 15.85 | 209.52 | 198 | 4HWD/4HWD | |
