Description
| Details: | |||
| Material: | 20Cr/20CrMnTi | Model Number: | 9V7710 |
| Product Name: | Caterpillar U Joint | Brand Name: | ROXIN |
| Series: | 9C | Sizes: | 71.44X209.62MM |
| Market: | After Market/OEM | Packing Details: | Inner bags+Outer Box & Carton + Wooden Pallet |
| Product Description: | |||
| Cross Shaft:20Cr/20CrMnTi | Bearing Cup:20Cr/20CrMnTi | ||
| Surface Hardness: HRC58-64 | Surface Hardness: HRC58-64 | ||
| Core Hardness: HRC33-48 | Cementite deepness:0.3-0.7mm | ||
| Cementite Deepness:0.8-1.3mm | Needle:GCr15 Surface Hardness: 58-64HRC | ||
| Dust Cover: NBR | Tolerance: D:0--0.015mm L:0--0.20mm | ||
| Grease:No.2 automobile grease | Circlips:65Mn Hardness:48-53HRC | ||
| CATERPILLAR U JOINT NO. | |||||
| 1250 | 4L6325 | 5V0199 | 6S6902 | 8D3144 | 542213 |
| 316116 | 4L6929 | 5V5474 | 6W2916 | 8D7719 | 1258810 |
| 616117 | 4R7972 | 5V7199 | 644683 | 8F7719 | 1730888 |
| 542213 | 4V4735 | 5Y0154 | 683574 | 8H3853 | 316117 |
| 641152 | 1894-6 | 5Y0767 | 7F3679 | 8K6042 | 9K1971 |
| 643633 | 5D2167 | 6D2529 | 7G9555 | 8K6970 | 9K1976 |
| 1060933 | 5D3248 | 6F0011 | 7H3958 | 8K7002 | 9K3969 |
| 1G0632 | 5D8293 | 6F2426 | 7H4545 | 8K8002 | 9K3970 |
| 1J8584 | 5D9153 | 6F4339 | 7H8101 | 8L6301 | 9P0356 |
| 2v1164 | 5F2426 | 6F4341 | 7J5241 | 8P8132 | 9P0604 |
| 1S9670 | 5H0445 | 6F4342 | 7J5242 | 8V1540 | 9P4809 |
| 1X8769 | 5H2308 | 6F4343 | 7J5245 | 8V6435 | 9R8715 |
| 2D1844 | 5H3756 | 6F7160 | 7J5251 | 8V7177 | 9S7120 |
| 2D2978 | 5K2006 | 6F9741 | 7K0442 | 8V7336 | 9V3812 |
| 2D3765 | 5K5012 | 6G0976 | 7K2220 | 8W9912 | 9V7705 |
| 2G4157 | 5M0800 | 6G4356 | 7K3526 | 8Y0809 | 9V7710 |
| 2H0858 | 5M5072 | 6H1261 | 7M2695 | 9C0397 | 11C |
| 2H0861 | 5M5073 | 6H1262 | 7V3842 | 9C0398 | 12C |
| 2K3631 | 5M7882 | 6H2577 | 7V4077 | 9C3095 | 12.5C |
| 2P9889 | 5S5680 | 6H2579 | 7X4961 | R7X7356 | 15C |
| 2V7153 | 5S7216 | 6K0316 | 451105 | 9C8367 | |
| 945581 | 5S7579 | 6K0885 | 8D0537 | 9H2477 | |
| 2Y8275 | 5T1352 | 6L1516 | 673627 | 9H2478 | |
| 3H6449 | 5T1362 | 6L6449 | XX7146 | D2X2203 | |
| 4D4091 | 5T8739 | 6M9762 | XX1894-6 | 9H6423 | |
| 1179887 | 5V1168 | 6S0706 | 8D2909 | 9H9491 | |

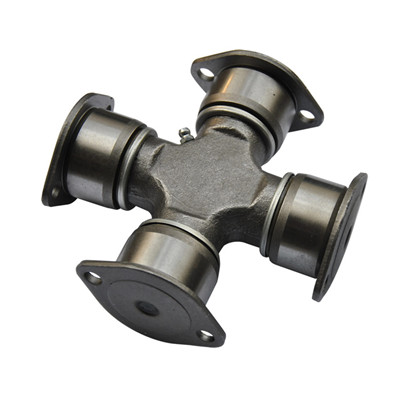

| U-JOINT WITH 4 WING BEARINGS-----CATERPILLAR | |||||
| SPICER | SIZE | CATERPILLAR | SPICER | SIZE | CATERPILLAR |
| 5-2002X | 33.34X79.37 | 1250 | 5-6108X | 42.88X140.45 | |
| 33.34X79.37 | 316117 | 49.22X148.4 | |||
| 5-2116X | 33.34X79.37 | 6S6902 | 5-6109X | 42.88X140.45 | |
| 5-3000X | 36.5X90.4 | 5D9153 | 49.22X148.4 | ||
| 5-3014X | 36.5X90.4 | 9K1976 | 42.88X140.45 | ||
| 36.5X90.4 | 49.22X148.4 | ||||
| 5-4002X | 36.5X108 | 6F7160 | 5-7000X | 49.22X148.4 | 8F7719 |
| 5-4143X | 36.5X108 | 6K0316 | 5-7105X | 49.22X148.4 | 2H0858 |
| 5-4123X | 36.5X108 | 6H1262 | 5-8200X | 49.22X206.31 | XX7146 |
| 5-4140X | 36.5X108 | 5M0800 | 5-8203X | 49.22X206.31 | |
| 5-5000X | 42.88X115.06 | 7J5251 | 5-8105X | 49.22X206.31 | 6H2579 |
| 5-5177X | 42.88X115.06 | 2K3631 | 5-8201X | 49.22X206.31 | |
| 5-5121X | 42.88X115.06 | 7J5245 | 5-8202X | 49.22X206.31 | |
| 5-5173X | 42.88X115.06 | 5-8500X | 71.4X165 | 7K0442 | |
| 49.22X130 | 5-8516X | 71.4X165 | 2V7153 | ||
| 5-5802X | 49.22X134.8 | 9C0398 | 71.4X165 | ||
| 5-6000X | 42.88X140.45 | 5-9000X | 71.4X209.51 | 9H9491 | |
| 5-6106X | 42.88X140.45 | 1S9670 | 5-9016X | 71.4X209.51 | 9V7710 |
| 5-6102X | 42.88X140.45 | 5-9002X | 71.4X209.51 | ||
